YD-12000 Pet bottle Stretch plastic blow molding machine

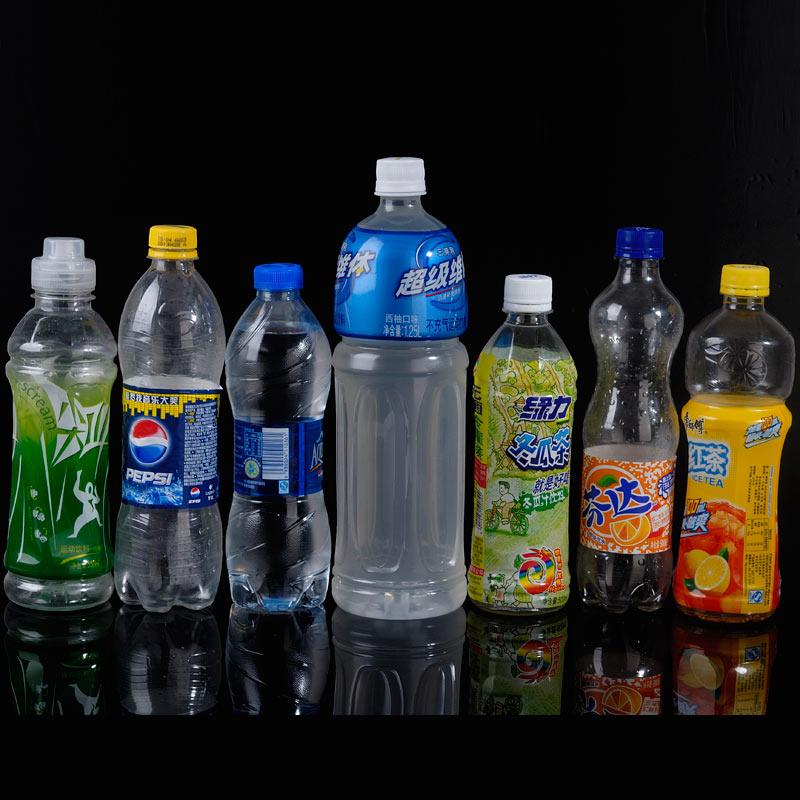

YD-12000 linear bottle blowing machines are used in the production of PET water bottles, hot filling bottles, carbonated beverage bottles, edible oil bottles, and pesticide bottles.YD Machinery's Q series linear bottle blowing machine stretches preforms by using a servo motor-controlled stretch rod. The advantage is that it can be stretched in sections,and positioning of the preform is at first in order to ensure the verticality of the preforms during stretching, then secondary stretching.Ensure the uniformity and consistency of each preform stretching.At the same time,bottle blowing machine has a fast stretching speed and precise position.
YD series linear bottle blowing machine features:
stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety.
3. servo transmission system, high positioning accuracy, fast speed, good stability and reliability.
4. suitable for flexible production of small quantity and various bottle shape,wide range of applications,meet customer needs.
5. increase energy using efficiency,increase productivity per unit of time.
6. manual and automatic methods of operation, human-machine interface control, simple operation.
7. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
8. safety self-locking device in each mechanical action,when a certain process fails, the program will automatically switch to a safe state.
9. less than 0.2% scrap rate for finished bottle .
| General Information | YD-12000 |
| Clamping Force | 100T |
| Clamping Stroke | 125MM |
| Max. Stretching Stroke | 400MM |
| Bottom Moving Stroke | 0-50MM |
| Number of Cavities | 10cavity |
| Theoretical Output | 10000-12000BPH(500ml) |
| Max. Mould Thickness | 300MM |
| Electrical System | |
| Voltage Standard | 380v/3PH/50Hz or special order |
| Number of Heating Zone | 6Sections |
| Total Power (Full Loaded) | 78KW |
| Container | |
| Max. Container Volume | 1L |
| Neck Diameter Range | 30mm |
| Max. Container Diameter | 85mm |
| Max. Container Height | 260mm |

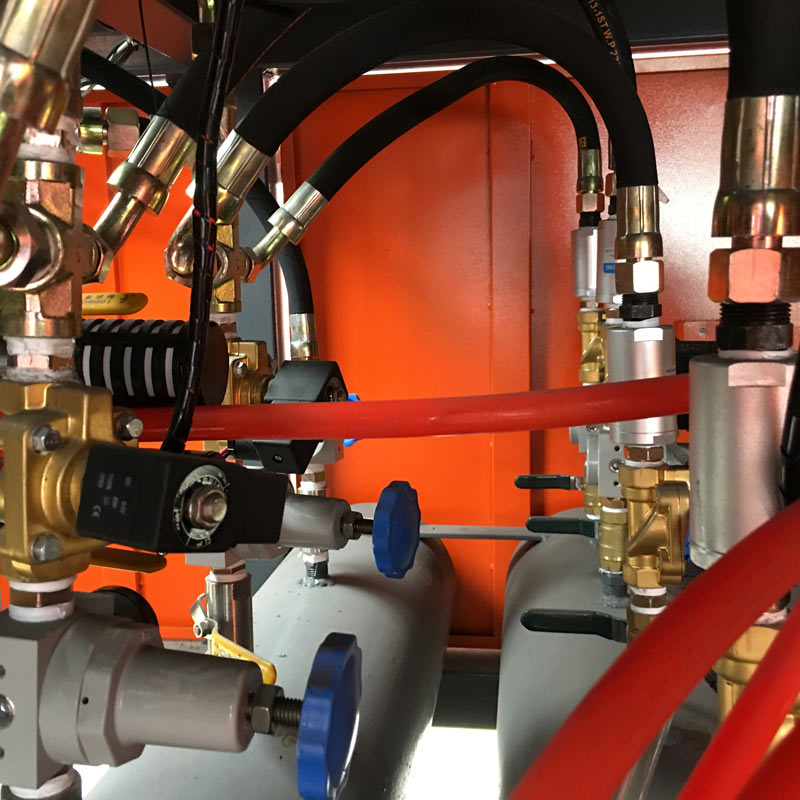

| Air system | |
| Low Air compressor | 10Bar |
| High Air compressor | 30-40Bar |
| Dimension & Weight | |
| Blow molding machine | 855*200*200cm |
| Preform Autoloader | 210*120*220cm |
| Net Weight | 8.8T |
